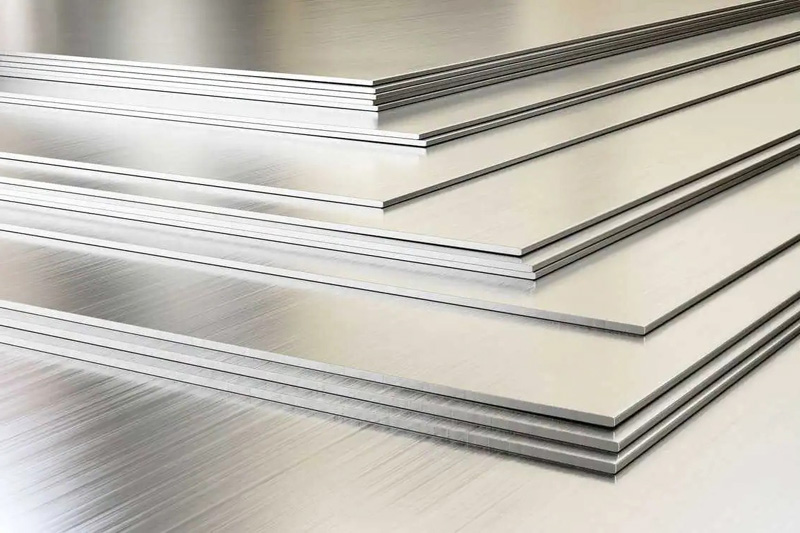

316 Stainless Steel Plates

Introduction to 316/316L Stainless Steel Plates

The world of industrial materials presents countless options, each with its own set of characteristics and applications. Among these, 316 stainless steel plates stand out as exceptional performers in demanding environments. During a recent tour of a maritime equipment manufacturing facility, I was struck by how frequently these particular plates were specified for critical components. The production manager explained that while they represented a higher initial investment, their longevity in harsh conditions made them the economical choice in the long run.

316 stainless steel plates belong to the austenitic family of stainless steels, distinguished by their enhanced corrosion resistance, particularly against chlorides and industrial chemicals. What sets them apart from more common grades like 304 is their molybdenum content—typically between 2-3%—which significantly improves their resistance to pitting and crevice corrosion in chloride-containing environments.

The 316L variant (with the “L” designating low carbon content) offers improved weldability and reduces the risk of carbide precipitation during welding or extended exposure to temperatures between 800°F and 1500°F (427°C to 816°C). This characteristic makes 316L particularly valuable in applications where post-weld corrosion resistance is crucial.

Engineers and materials specialists often debate material selection for critical applications. The consensus typically emerges that while alternative materials may offer cost savings, the long-term performance of E-Sang 316 stainless steel plates in challenging environments often justifies their selection, especially when failure could lead to significant consequences.

Chemical Composition and Material Properties

The superior performance of 316 stainless steel plates derives directly from their carefully balanced chemical composition. A metallurgical analysis reveals the precise formulation that gives these plates their remarkable characteristics:

What’s fascinating about this composition is how the interplay between elements creates properties greater than the sum of their parts. Dr. Elena Mikhailov, a metallurgical engineer specializing in corrosion-resistant alloys, explained to me that “the synergistic effect between chromium, nickel, and especially molybdenum creates a remarkably stable passive layer that self-heals when damaged, providing ongoing protection even in aggressive environments.”

The mechanical properties of 316 stainless steel plates make them suitable for structural and pressure-containing applications across various industries:

• Tensile Strength: 75 ksi (515 MPa) minimum
• Yield Strength: 30 ksi (205 MPa) minimum
• Elongation: 40% minimum in 2 inches
• Hardness: Approximately 80 HRB (Rockwell B scale)
• Density: 8.0 g/cm³ (0.29 lb/in³)

These properties remain relatively stable across a wide temperature range, though strength decreases somewhat at elevated temperatures. The material maintains excellent ductility even at cryogenic temperatures, making it suitable for both high-temperature processing equipment and cold storage applications.

The thermal conductivity of 316 stainless steel is relatively low compared to carbon steel or aluminum, which can be advantageous for thermal isolation but requires consideration during welding procedures. Its magnetic permeability is low, making it essentially non-magnetic in the annealed condition—a property valuable in certain specialized applications where magnetic interference must be minimized.

Manufacturing Process and Quality Standards

The journey of 316 stainless steel plates from raw materials to finished product involves a sophisticated series of processes that directly impact their final performance. Last year, I observed this transformation firsthand at a specialized mill that focuses exclusively on high-performance alloys.

The manufacturing typically begins with the careful selection and melting of primary and secondary raw materials in an electric arc furnace. This initial melt undergoes refinement through argon oxygen decarburization (AOD) or vacuum oxygen decarburization (VOD) processes to achieve the precise chemical composition required for 316 grade. These secondary refining steps are crucial for removing excess carbon and controlling nitrogen content, particularly for the 316L variant.

After refinement, the molten steel is cast into slabs, which are then conditioned to remove surface defects before entering the rolling process. Hot rolling reduces these slabs to intermediate thickness, followed by annealing and pickling to restore the microstructure and remove surface oxides. Depending on the desired final thickness and surface finish, the plates may undergo cold rolling, additional annealing, and surface treatment.

Quality assurance pervades every step of production, with 316 stainless steel plates subject to rigorous standards:

Beyond meeting these standards, manufacturers typically perform a battery of tests on each production lot:

• Chemical analysis using optical emission spectroscopy or X-ray fluorescence
• Tensile testing to verify strength and ductility
• Hardness testing for consistency
• Corrosion testing (often salt spray testing per ASTM B117)
• Non-destructive examination, including ultrasonic testing for internal defects

“What separates exceptional 316 stainless steel plates from merely adequate ones often comes down to consistency in processing parameters,” noted James Chen, a quality control manager with 25 years of experience in specialty metals production. “Tight control of temperature profiles during annealing, proper descaling procedures, and meticulous surface finishing all contribute to a product that will perform reliably in the field.”

The final plates are typically available in thicknesses ranging from 0.5mm to 50mm or more, with various surface finishes including:

• No. 1 finish (hot-rolled, annealed and pickled)
• 2B finish (cold-rolled, annealed, pickled and skinpassed)
• No. 4 finish (polished with 150-180 grit abrasive)
• BA finish (bright annealed)
• Custom finishes for specific applications

Applications Across Industries

The exceptional combination of corrosion resistance, strength, and workability makes 316 stainless steel plates indispensable across numerous industries. Their versatility continues to impress me as I encounter them in increasingly diverse applications.

In marine environments, these plates form the backbone of shipbuilding components that must withstand constant exposure to saltwater. Bulkheads, deck fittings, and propeller shafts in high-end vessels rely on 316 stainless steel’s resistance to chloride-induced pitting. During a recent conversation with Captain Marion Estevez, who operates research vessels in the Caribbean, she emphasized, “After switching to 316 stainless for our exposed hardware and hull plates in splash zones, our maintenance requirements dropped dramatically—we’ve seen fittings remain pristine after five years in service where we used to replace them annually.”

The chemical processing industry presents some of the most demanding applications. Reaction vessels, storage tanks, and piping systems handling corrosive chemicals benefit from 316 stainless steel plates’ resistance to sulfuric acid, phosphoric acid, and various salt solutions. In a Pennsylvania chemical plant I visited, the engineering team had standardized on 316L for their process equipment after experiencing failures with lower-grade materials, finding the increased upfront cost was offset by extended service life and reduced downtime.

The pharmaceutical and food processing sectors value 316 stainless steel plates for different reasons. Their non-porous, easily cleanable surface inhibits bacterial growth, while their resistance to cleaning chemicals and sanitizing agents ensures long-term integrity. The absence of surface coatings that could contaminate products makes them ideal for:

• Fermentation tanks and bioreactors
• Mixing vessels and homogenizers
• Packaging equipment components
• Clean room wall panels and equipment housings
• Transport containers and storage systems

One pharmaceutical equipment designer told me they specify 316L exclusively for product contact surfaces due to its compatibility with clean-in-place (CIP) systems using aggressive sanitizing chemicals.

Architectural applications represent a growing market for 316 stainless steel plates, particularly in coastal environments and areas with high pollution levels. Building facades, structural elements, and decorative features benefit from both corrosion resistance and aesthetic appeal. The Gateway Arch in St. Louis, while constructed from 304 stainless steel, illustrates the potential of stainless plates in iconic structures—newer coastal structures increasingly specify 316 grade for its superior performance in salt-laden air.

The energy sector employs these plates in various capacities:

• Heat exchangers handling seawater or aggressive process fluids
• Components for offshore oil and gas platforms
• Scrubber systems in power plants
• Solar thermal energy systems
• Biomass processing equipment

Environmental technology applications include wastewater treatment equipment, desalination plants, and pollution control systems—all environments where the combination of corrosive fluids, varying temperatures, and continuous operation demands materials that maintain integrity with minimal maintenance.

Specialty applications continue to emerge as engineers discover new uses for this versatile material. Cryogenic storage vessels, nuclear waste containment, and components for superconducting magnets all leverage the stability and non-magnetic properties of 316 stainless steel plates.

Advantages and Limitations

The decision to specify 316 stainless steel plates involves weighing a complex matrix of advantages against potential limitations within the context of specific applications. Having spent considerable time evaluating material choices for critical projects, I’ve developed an appreciation for this nuanced balancing act.

Key Advantages

The corrosion resistance of 316 stainless steel plates stands as their most celebrated attribute. The addition of molybdenum dramatically improves resistance to pitting and crevice corrosion compared to 304 grade, particularly in environments containing chlorides. This makes them substantially more durable in:

• Marine atmospheres
• Road salt exposure
• Process environments with halide compounds
• Applications involving brackish water

Their mechanical properties remain stable across a wide temperature range. While some materials become brittle at low temperatures or lose strength when heated, 316 stainless steel maintains useful mechanical properties from cryogenic temperatures up to approximately 800°C (1472°F). This temperature stability eliminates the need for different materials in systems that experience significant temperature variations.

The aesthetic qualities shouldn’t be overlooked. The natural silver-gray appearance with a subtle sheen maintains its appearance without additional coatings or treatments. Unlike coated materials, surface damage doesn’t lead to underlying corrosion, as the material’s corrosion resistance is inherent to its composition rather than dependent on a protective layer.

From a fabrication perspective, 316 stainless steel plates offer excellent formability, weldability (especially the 316L variant), and machinability. They can be cut, bent, rolled, and joined using conventional techniques, though specific parameters may differ from carbon steel processing.

Limitations and Challenges

Cost considerations represent the most significant limitation. 316 stainless steel typically commands a premium of 25-50% over 304 grade, and several times the cost of carbon steel. Dr. Robert Yamamoto, a materials economist at Pacific Materials Institute, pointed out, “The cost differential isn’t just in the material itself—fabrication costs are often higher due to the need for specialized tooling, slower cutting speeds, and more rigorous quality control procedures.”

Weight considerations can present design challenges. With a density approximately 8 g/cm³, stainless steel plates are significantly heavier than aluminum (2.7 g/cm³) or fiber-reinforced polymers. This may necessitate additional structural support or limit applications where weight is a critical factor.

Despite their broad corrosion resistance, 316 stainless steel plates do have vulnerabilities. They’re not recommended for exposure to:

• Concentrated hot halides (particularly chlorides)
• Strong reducing acids like hydrochloric acid
• Environments that cause stress corrosion cracking

During a failure analysis project I participated in, we discovered that a seemingly inexplicable failure of a 316L component resulted from exposure to hydrochloric acid fumes—a reminder that material selection requires understanding the full range of potential exposures, not just the primary service environment.

Thermal conductivity limitations can be problematic in heat exchange applications. At approximately 16.3 W/m·K, 316 stainless steel conducts heat much less efficiently than copper (401 W/m·K) or aluminum (237 W/m·K), potentially requiring larger heat transfer surfaces or alternative materials in thermally critical applications.

This table summarizes the performance of 316 stainless steel plates in various environments compared to alternative materials:

Selecting the Right 316 Stainless Steel Plate

Choosing the appropriate 316 stainless steel plate involves more nuance than simply specifying the grade. Having guided clients through this decision process multiple times, I’ve found that several key considerations dramatically impact both performance and cost-effectiveness.

Thickness selection requires balancing structural requirements against weight and cost considerations. While thicker plates provide greater strength and rigidity, they also increase weight, material costs, and fabrication complexity. Finite element analysis can optimize thickness for specific load conditions, potentially reducing material usage while maintaining performance. I recall a project where reducing a tank wall thickness by just 2mm—after careful engineering analysis—resulted in a 15% cost reduction without compromising integrity.

Surface finish selection significantly impacts both functionality and aesthetics:

• No. 1 finish (hot-rolled, annealed, pickled): Suitable for industrial applications where appearance is secondary to function
• 2B finish: Smooth, reflective finish ideal for applications requiring good cleanability
• No. 4 finish: Polished, satin appearance popular for architectural and food processing applications
• BA (Bright Annealed): Mirror-like finish for decorative applications or where absolute cleanability is essential
• Custom finishes: Including patterned, embossed, or specialty textured surfaces

The edge condition specification often receives insufficient attention but can dramatically impact fabrication and performance. Options include:

• Mill edge: The natural edge from the cutting process
• Deburred edge: Sharp edges removed to improve safety and handling
• Ground edge: Precisely finished edge for welding preparation or aesthetics
• Custom edge preparations: Bevels, rounds, or specialized profiles for specific joining methods

Dimensional tolerance requirements should align with the application needs. Tighter tolerances increase cost but may be essential for precise fitting or aesthetic uniformity. Standard mill tolerances for thickness typically range from ±5% to ±10% depending on plate thickness, but closer tolerances can be specified when necessary.

Certification requirements vary by application, particularly for critical or regulated industries:

• Material Test Reports (MTR) documenting chemical composition and mechanical properties
• Specific testing certifications like positive material identification (PMI)
• Compliance with industry standards (ASME, ASTM, etc.)
• Traceability documentation
• Third-party inspection certificates

During a conversation with procurement specialist Maria Gonzalez, who manages material sourcing for a major pharmaceutical equipment manufacturer, she emphasized, “We’ve learned to be extremely specific about our certification requirements. Incomplete documentation can delay projects by weeks when materials can’t be released for production until all quality assurance steps are verified.”

Cut-to-size requirements should be evaluated early in the planning process. While standard mill sizes may offer cost advantages, the waste and additional fabrication from cutting standard plates may offset these savings for specialized dimensions. Many suppliers offer custom cutting services that can reduce both waste and labor costs.

This decision matrix illustrates how application requirements might influence 316 stainless steel plate specifications:

Installation and Maintenance Best Practices

The performance and longevity of 316 stainless steel plates depend significantly on proper installation and maintenance protocols. Years ago, I witnessed a marine installation where improper handling led to premature corrosion issues that could have been entirely avoided with better practices.

Installation Considerations

Handling protocols should minimize contact with carbon steel tools and equipment. During a shipyard visit, I noticed workers had established dedicated workstations for stainless steel fabrication with specialized tools to prevent cross-contamination. Iron particles embedded in the stainless steel surface can create sites for localized corrosion. Best practices include:

• Using dedicated stainless steel tools when possible
• Thoroughly cleaning tools used with carbon steel before stainless steel work
• Utilizing non-metallic slings or padded lifting devices
• Storing plates separated from carbon steel materials
• Maintaining clean work areas to prevent contamination

Cutting methods significantly impact edge quality and the heat-affected zone. While plasma and laser cutting offer precision, they create heat-affected zones that may require post-cutting treatment. Waterjet cutting minimizes thermal effects but typically costs more. For thicker plates, machining operations may provide the best combination of edge quality and dimensional control.

Joining techniques must preserve the corrosion-resistant properties of the base material. Welding 316 stainless steel plates requires particular attention to:

• Selecting appropriate filler metals (typically 316L to maintain low carbon content)
• Using proper shielding gases to prevent oxidation
• Controlling heat input to minimize distortion
• Post-weld cleaning to remove heat tint and restore passivation
• Avoiding dissimilar metal connections that might create galvanic cells

Jason Tucker, a welding engineer specializing in corrosion-resistant alloys, explained during a fabrication workshop, “The biggest mistake I see is treating stainless like ordinary steel. The welding parameters, cleaning procedures, and quality standards need to be significantly different to maintain the material’s inherent properties.”

Mechanical fastening, when necessary, introduces potential crevice corrosion sites. Using appropriate fastener materials (typically 316 stainless or higher alloys) and consideration of gasket compatibility helps mitigate these risks.

Maintenance Protocols

Cleaning procedures should maintain the passive oxide layer that gives stainless steel its corrosion resistance. Effective approaches include:

• Regular washing with mild detergent and water in normal environments
• More frequent cleaning in marine or industrial atmospheres
• Avoiding chloride-containing cleaners
• Using soft brushes or cloths rather than abrasive pads that might embed particles
• Rinsing thoroughly after cleaning to remove all chemical residues

Inspection schedules depend on the severity of the service environment. In moderate conditions, annual visual inspections may suffice, while aggressive environments might require quarterly examination for early signs of corrosion or degradation.

Passivation treatments can restore corrosion resistance if the surface has been compromised. These chemical treatments (typically nitric or citric acid solutions) remove free iron and other contaminants while enhancing the chromium oxide layer. I’ve seen impressive results from passivation treatments on stainless equipment that had begun showing early signs of corrosion, effectively resetting the material’s protective capabilities.

Surface restoration techniques can address aesthetic and functional deterioration. Options include:

• Mechanical polishing to remove minor scratches and stains
• Electropolishing for more uniform surface refinement
• Chemical cleaning for removal of specific contaminants
• Application of specialized protective waxes in extreme environments

Preventive measures are often more cost-effective than remediation. Installing sacrificial anodes in marine applications, using insulating materials between dissimilar metals, and applying protective measures during construction activities near installed stainless steel can prevent costly damage.

Case Studies and Real-World Applications

The true test of any material lies in its performance under real-world conditions. These case studies illuminate how 316 stainless steel plates have solved specific challenges across various industries.

Coastal Desalination Plant Components

A Middle Eastern desalination facility faced chronic equipment failures due to the combination of seawater exposure and high operating temperatures. Their initial design utilized coated carbon steel for cost savings, but coating failures led to rapid corrosion and frequent shutdowns.

After consulting with materials specialists, they redesigned critical components using 316L stainless steel plates. The implementation included:

• Seawater intake screens and support structures
• Flash chamber partitions and splash zones
• Heat exchanger frames and support components
• Pump baseplates and structural elements

Five years after the conversion, maintenance costs had decreased by 62%, and unplanned downtime was reduced by over 80%. While the initial capital investment increased by approximately 35%, the total cost of ownership analysis showed break-even at 2.8 years, with substantial savings thereafter. The operations director commented, “We initially resisted the higher material cost, but the performance improvement has been transformative for our reliability metrics.”

Pharmaceutical Bioreactor Vessel

A biotech manufacturer needed vessels for a new monoclonal antibody production line. The critical requirements included:

• Absolute cleanliness and product purity
• Resistance to aggressive cleaning chemicals
• Ability to withstand repeated sterilization cycles
• Smooth surfaces to prevent product adhesion or contamination

The design team selected 316L stainless steel plates with a 2B finish, electropolished after fabrication to achieve a surface roughness of less than 0.5μm Ra. Special attention was given to the weld quality, with full penetration welds, internal purging during welding, and post-weld treatments to ensure crevice-free internal surfaces.

The vessels have now operated continuously for seven years without product contamination issues, despite exposure to various growth media, cleaning solutions, and sterilization procedures. The project leader noted, “The material cost was a small fraction of the total project investment, but the confidence it gives us in product purity is incalculable.”

Architectural Application in Urban Environment

An innovative office building in Singapore incorporated large 316 stainless steel plate panels as both structural and aesthetic elements on its exterior. The tropical environment, with high humidity, significant rainfall, and urban pollution, presented challenges for maintaining appearance.

The architects specified 316 stainless steel with a custom-patterned finish that both enhanced visual appeal and masked potential fingerprints or minor surface contamination. The installation included:

• Proper isolation from dissimilar metals in the supporting structure
• Drainage channels to prevent water accumulation
• Accessible mounting systems for maintenance
• Strategic placement to minimize direct handling

After a decade in service, the building exterior maintains its intended appearance with minimal maintenance, requiring only quarterly cleaning with mild detergent solution. The project architect reflected, “We considered various materials, but the longevity of 316 stainless in this environment has proven our selection correct. The initial premium has been offset many times over by the reduced maintenance requirements.”

Chemical Processing Equipment Upgrade

A specialty chemicals manufacturer experienced recurring failures in reactor vessels handling phosphoric acid solutions at elevated temperatures. Their existing glass-lined steel vessels required frequent relining, causing production interruptions and contamination concerns.

After a comprehensive materials evaluation, they replaced critical components with 316L stainless steel plate construction. The implementation included:

• Reactor vessel shells and heads
• Agitator support structures
• Process piping and valve bodies
• Heat exchanger plates

The upgraded equipment has operated for over four years without the integrity issues that previously plagued operations. Production capacity increased by 14% due to reduced downtime, and product quality improved with the elimination of contamination from deteriorating vessel linings. The plant manager shared, “We should have made this change years ago. The ongoing costs of repairs and lost production far outweighed the higher initial investment.”

These cases illustrate a common theme: while the initial cost of 316 stainless steel plates often exceeds alternative materials, the total lifecycle analysis frequently reveals them as the economical choice in demanding applications. The combination of longevity, reduced maintenance, improved reliability, and elimination of costly downtime continues to expand their use across industries.

Conclusion: Making the Right Material Choice

Selecting materials for critical applications requires balancing immediate costs against long-term performance. Through this extensive exploration of 316 stainless steel plates, several key insights emerge to guide decision-making.

The distinctive combination of corrosion resistance, mechanical properties, and fabricability makes 316 stainless steel plates particularly valuable in challenging environments. The molybdenum content that distinguishes them from other austenitic grades provides substantial benefits in applications where chloride exposure occurs, whether in marine environments, chemical processing, or even urban atmospheres with pollution concerns.

That said, material selection should never default to the highest performance option without considering the specific requirements of the application. The premium cost of 316 stainless steel is justified when:

• Exposure to corrosive media would compromise lower alloys
• Maintenance access is limited or costly
• System reliability is critical to operations
• Lifecycle costs outweigh initial expenditure
• Aesthetic appearance must be maintained long-term

Conversely, other materials may prove more appropriate when:

• Corrosion conditions are mild
• Weight considerations are paramount
• Thermal conductivity is a primary requirement
• Budget constraints are severe and service life expectations are modest

The evolution of manufacturing techniques continues to enhance the value proposition of these materials. Improved mill processing has reduced variation in properties, advanced surface finishes offer new aesthetic and functional options, and more efficient fabrication techniques have lowered the cost premium for finished components.

Looking forward, emerging technologies may further expand applications for 316 stainless steel plates. Additive manufacturing techniques are beginning to enable complex geometries previously difficult to achieve with plate materials. Surface modification technologies are enhancing already impressive corrosion resistance for extreme environments. As these technologies mature, the cost-performance equation will likely shift further in favor of these versatile materials.

The real-world case studies demonstrate that total cost of ownership analysis frequently favors higher initial investment in 316 stainless steel plates when the full lifecycle implications are considered. Maintenance requirements, replacement costs, downtime impacts, and risk mitigation all factor into comprehensive economic evaluation.

Ultimately, the selection of 316 stainless steel plates represents a commitment to performance, reliability, and longevity—qualities increasingly valued in a world focused on sustainability and responsible resource utilization. By understanding the nuanced properties, limitations, and applications of these materials, engineers and specifiers can make informed decisions that balance immediate budget pressures against long-term value.

Frequently Asked Questions About 316 Stainless Steel Plates

Q: What are 316 Stainless Steel Plates used for?
A: 316 Stainless Steel Plates are used in a variety of industries due to their excellent corrosion resistance, mechanical strength, and durability. They are commonly applied in marine environments for shipbuilding and offshore platforms, in chemical processing for tanks and piping, and in the food and beverage industry for equipment that requires resistance to food acids. Additionally, they are utilized in medical devices and architectural projects.

Q: What makes 316 Stainless Steel Plates resistant to corrosion?
A: The corrosion resistance of 316 Stainless Steel Plates is primarily due to their chemical composition, which includes chromium, nickel, and molybdenum. The addition of molybdenum enhances resistance to pitting and crevice corrosion, especially in chloride environments, making them ideal for use in marine settings and chemical processing.

Q: How do 316 and 316L Stainless Steel Plates differ?
A: 316 and 316L Stainless Steel Plates differ mainly in their carbon content. The “L” in 316L indicates a lower carbon content (≤ 0.03%), which improves weldability and reduces the risk of intergranular corrosion. Both grades share similar mechanical properties but 316L is preferred for heavy-gauge welded components.

Q: Are 316 Stainless Steel Plates suitable for high-temperature applications?
A: Yes, 316 Stainless Steel Plates are suitable for high-temperature applications. They retain structural integrity at elevated temperatures and are often used in heat exchangers and furnaces. However, continuous use in water environments above 425-860°C is not recommended due to reduced corrosion resistance.

Q: Can 316 Stainless Steel Plates be easily fabricated?
A: Yes, 316 Stainless Steel Plates are easily fabricated using standard shop practices. They can be welded, rolled, or brake formed into various shapes and are commonly used in architectural and industrial applications due to their ease of fabrication and corrosion resistance.

Related posts:

Stainless Steel Flat Bars Stainless Steel I-Beams Stainless Steel Threaded Rods Stainless Steel Hexagonal Bars
