The Definitive Guide to Embossed Stainless Steel Sheets

Standing in a bustling architectural materials showroom last month, I watched as a client ran their fingers across various metal surface samples. When they reached the embossed stainless steel display, their expression changed—a mixture of surprise and appreciation at how the light played across the textured surface. “I never realized stainless steel could look this distinctive,” they remarked. That moment perfectly captured why embossed stainless steel has become increasingly significant in contemporary design and manufacturing—it transforms a utilitarian material into something that engages multiple senses while maintaining exceptional performance characteristics.

Embossed stainless steel sheets represent a specialized category of metal products where patterns are pressed into the surface, creating textures that serve both aesthetic and functional purposes. Beyond their striking appearance, these textured surfaces offer practical benefits like increased slip resistance, light diffusion, and the ability to mask minor scratches and dents. The manufacturing processes involved—ranging from roll embossing to press techniques—produce consistent patterns that maintain the inherent properties of stainless steel while adding new dimensions of utility.

The versatility of embossed stainless steel has made it a preferred material across diverse sectors, from architectural cladding and elevator interiors to industrial flooring and food processing equipment. Companies like E-Sang have pioneered innovations in this field, developing specialized embossing techniques that meet increasingly sophisticated market demands.

Understanding Embossed Stainless Steel

At its core, embossed stainless steel begins with conventional stainless steel sheet—typically austenitic grades like 304 or 316—that undergoes a specialized forming process. The embossing operation creates raised or recessed patterns by applying controlled pressure, permanently deforming the metal’s surface while preserving its fundamental properties.

The history of embossed metal surfaces stretches back centuries, but modern industrial embossing of stainless steel emerged in the mid-20th century as manufacturing techniques advanced. Initially used primarily for functional purposes like improving traction on industrial flooring, the aesthetic potential of these materials gradually gained recognition in architectural and design applications.

What distinguishes embossed stainless steel from other textured metals is the combination of pattern versatility with stainless steel’s inherent corrosion resistance, hygiene benefits, and mechanical durability. This marriage of form and function explains why embossed stainless steel has become increasingly prevalent in settings ranging from public transportation to high-end interior design.

During a recent tour of a metallurgical testing facility, I observed how embossed stainless steel samples maintained their corrosion resistance even when the embossing process had introduced significant deformation to the material. The metallurgist explained that proper embossing techniques actually work with the material’s crystalline structure rather than compromising it—a crucial distinction that preserves performance while adding aesthetic value.

Types and Patterns of Embossed Stainless Steel

The world of embossed stainless steel encompasses a remarkable diversity of patterns, each with specific visual and functional characteristics. Common patterns include:

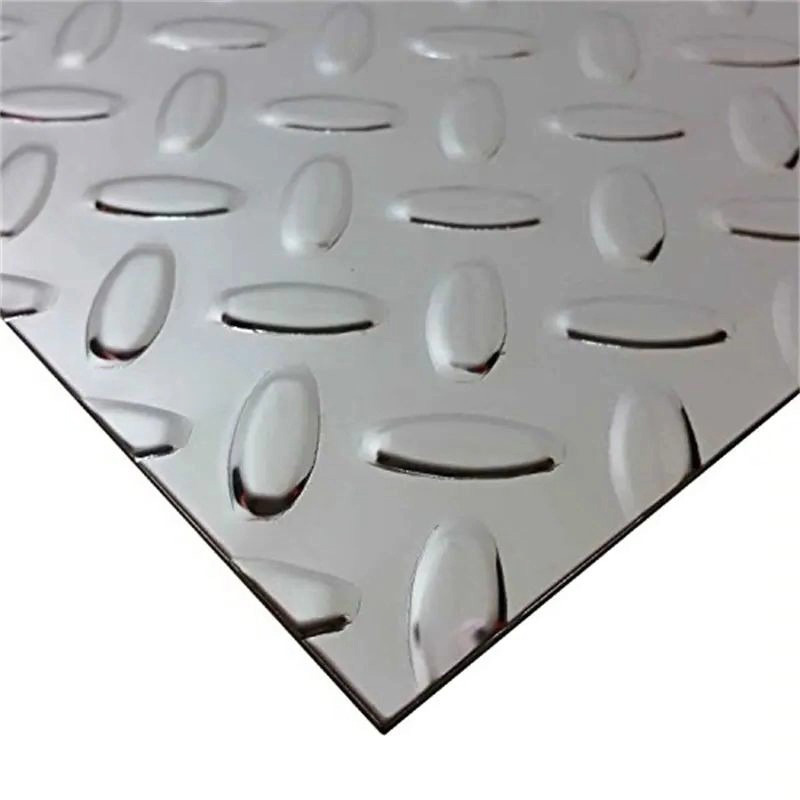

Checkered/Diamond Plate: Perhaps the most recognized industrial pattern, featuring raised diamonds that provide excellent slip resistance. The pattern depth typically ranges from 0.8mm to 1.5mm, with diamond spacing variations creating different visual effects.

Linen/Canvas: Presenting a subtle, fabric-like texture that diffuses light and minimizes the appearance of fingerprints. The fine pattern makes it popular for elevator interiors and architectural panels.

Leather Grain: Mimicking natural leather texture with an organic, non-repeating pattern that works exceptionally well for decorative applications like wall cladding and furniture.

Circle/Coin: Featuring raised circular elements of various diameters, creating excellent grip characteristics while maintaining ease of cleaning.

Custom Patterns: Beyond standard options, manufacturers increasingly offer proprietary or custom designs, from corporate logos to specialized geometric patterns.

A materials specifier I consulted noted that “the selection of embossed pattern is rarely just an aesthetic decision—it needs to balance appearance, cleanability, light reflection properties, and mechanical performance requirements.”

The stainless steel grade used as the base material significantly influences both appearance and performance. The most commonly embossed grades include:

• 304 (18/8): The workhorse grade, offering good corrosion resistance and formability for most interior applications
• 316: With added molybdenum for superior corrosion resistance, particularly in marine or chemical environments
• 430: A ferritic stainless steel sometimes used for decorative applications where magnetic properties are acceptable
• 201: An economical alternative to 304 in certain applications, though with somewhat reduced corrosion resistance

The finish applied before embossing—whether 2B, BA (bright annealed), or brushed—also influences the final appearance. A bright finish creates more dramatic light play across the embossed texture, while a brushed finish produces more subtle effects.

Through personal testing of various samples, I’ve noticed that natural lighting conditions dramatically affect how embossed patterns are perceived, with low-angle lighting accentuating texture through shadow effects that overhead lighting doesn’t capture. This has significant implications for architectural applications where lighting conditions vary throughout the day.

Manufacturing Process and Technology

The creation of embossed stainless steel involves specialized equipment and precise process control to ensure pattern consistency without compromising the material’s structural integrity. Two primary manufacturing methods dominate the industry:

Roll Embossing: In this continuous process, stainless steel sheets pass between a pair of rollers—one patterned and one typically elastic (often made of paper or polymer). The patterned roller impresses its design onto the stainless steel under precisely controlled pressure. This method is ideal for high-volume production of consistent patterns and can process coils of material efficiently.

Press Embossing: For more complex or deeper patterns, hydraulic presses fitted with matched pattern dies apply substantial pressure to individual sheets. Though slower than roll embossing, this method allows for intricate patterns with greater depth.

During a manufacturing facility visit, I observed the precision required in roller alignment and pressure control. A production engineer explained, “Even half a millimeter misalignment can create ghost patterns or inconsistent depths that become glaringly obvious under certain lighting conditions.”

The hardness of stainless steel presents unique challenges during embossing. The material must often undergo annealing (heat treatment) prior to embossing to increase its ductility, followed by controlled work-hardening to restore desired mechanical properties. This balance between formability and final performance characteristics requires considerable metallurgical expertise.

Recent technological innovations have transformed embossing capabilities:

1. Computer-controlled embossing systems that can produce gradients or transitional patterns
2. Laser-etched embossing rolls allowing more intricate and customized designs
3. Multi-stage processes combining embossing with other surface treatments

Material thickness plays a crucial role in embossing outcomes. While thin gauges (0.5-1.0mm) allow for fine details but limit pattern depth, heavier gauges (1.5-3.0mm) permit deeper embossing but may lose definition in more delicate patterns. As one manufacturer’s technical director told me, “The relationship between material thickness, pattern depth, and pattern detail represents a three-dimensional optimization problem that must be solved for each application.”

Technical Specifications and Performance Characteristics

The technical aspects of embossed stainless steel extend far beyond aesthetics, encompassing crucial mechanical and physical properties that determine suitability for various applications. These specifications vary significantly depending on base material, embossing pattern, and manufacturing process.

Typical dimensional specifications include:

The embossing process affects several key performance characteristics:

Work Hardening: Surface embossing typically increases the hardness of stainless steel by 10-15% compared to flat sheet of the same grade, enhancing wear resistance but potentially reducing formability after embossing.

Effective Thickness: While the nominal thickness of stainless steel remains unchanged, the effective structural thickness may be reduced by up to 15% depending on embossing depth and pattern. A structural engineer I consulted explained, “For load-bearing applications, we calculate using an effective thickness that accounts for the material displacement during embossing.”

Corrosion Resistance: Properly executed embossing should not significantly impact corrosion resistance. However, deep patterns with sharp corners can create stress points that may experience preferential corrosion in harsh environments. Testing has shown that embossed 316 grade maintains excellent performance in salt-spray tests exceeding 1,000 hours.

Slip Resistance: One of the most valuable functional benefits, measured using methods like the Pendulum Test (BS 7976) or the R-scale (DIN 51130). Patterns like checkered plate typically achieve R11-R13 ratings, making them suitable for wet or oily environments.

The following performance comparison highlights how embossed stainless steel compares to alternative materials:

*Varies by specific grade of stainless steel

When examining samples in a materials testing laboratory, I noticed that embossed patterns with gradual transitions and rounded features maintained better integrity during bend testing than those with sharp, deep patterns. This observation aligns with findings from fatigue testing that show pattern geometry significantly influences long-term performance under cyclic loading.

Aesthetic and Functional Benefits

The appeal of embossed stainless steel extends far beyond its technical specifications, offering a unique combination of visual distinctiveness and practical advantages that few other materials can match. These dual benefits explain its growing popularity across diverse applications.

From an aesthetic perspective, embossed stainless steel transforms an otherwise uniform surface into one with visual depth and character. The interaction between light and textured metal creates dynamic effects that change with viewing angle and lighting conditions. During a recent architectural installation I documented, the embossed stainless steel wall panels appeared dramatically different at various times of day—subtly reflective in morning light, boldly textured at midday, and warmly dimensional at sunset.

Design professionals increasingly value embossed stainless steel for its ability to:

1. Create visual interest without requiring additional finishes or coatings
2. Provide visual continuity while reducing the monotony of large metal surfaces
3. Complement both traditional and contemporary design aesthetics
4. Develop unique spatial experiences through light interaction

Beyond these visual qualities, embossed stainless steel delivers substantial functional benefits:

Scratch Concealment: Minor surface damage that would be immediately apparent on smooth stainless steel becomes virtually invisible on embossed surfaces. This property dramatically extends aesthetic lifespan in high-traffic areas.

Fingerprint Resistance: Textured surfaces significantly reduce the visibility of fingerprints and smudges—a particular advantage in public spaces and food service environments.

Light Diffusion: Embossed patterns scatter light rather than creating sharp reflections, reducing glare and improving visual comfort in spaces with multiple light sources.

Acoustic Properties: Certain embossed patterns can improve sound absorption compared to flat metal surfaces, contributing to better acoustic environments in large spaces.

Thermal Effects: The increased surface area of embossed sheets can enhance heat dissipation in certain applications, though the effect varies significantly with pattern type and depth.

The combination of aesthetic flexibility and functional performance creates compelling value propositions for specific applications. For example, in food processing facilities, embossed stainless steel provides the necessary sanitary properties while offering better slip resistance and damage concealment than smooth surfaces. As the operations manager of a dairy processing plant told me, “We’ve reduced both maintenance costs and workplace incidents since switching to embossed surfaces in high-traffic areas.”

When considering aesthetic impacts, it’s worth noting that embossing can affect how color is perceived on color-coated stainless steel. The pattern creates micro-shadows and highlights that can make the same color appear to have different intensities across a surface. This effect can be either exploited as a design feature or minimized through pattern selection, depending on project requirements.

Industry Applications and Case Studies

The versatility of embossed stainless steel has led to its adoption across a remarkable range of industries and applications, each leveraging different combinations of its aesthetic and functional properties. Understanding these real-world applications provides valuable insight into the material’s capabilities and limitations.

Architectural Applications

In contemporary architecture, embossed stainless steel has evolved from purely functional applications to becoming a signature design element. The Jørn Utzon-designed Sydney Opera House renovation incorporated custom-embossed stainless steel panels that maintained the iconic building’s character while improving durability. Similarly, the expansion of Madrid’s Reina Sofía Museum utilized embossed stainless steel panels with a custom pattern that creates subtle light play while resisting the effects of pollution and urban environment.

For exterior applications, the selection of appropriate patterns and grades becomes critical. A building envelope specialist I consulted noted that “pattern depth affects how dirt accumulates and how effectively rain can perform a natural cleaning function—deeper patterns with adequate drainage characteristics perform better in urban environments.”

Transportation Sector

The transportation industry has embraced embossed stainless steel for both functional and aesthetic reasons. Modern passenger trains and subway cars frequently use embossed stainless steel for:

• Floor plates (typically checkered pattern for slip resistance)
• Wall panels (subtle patterns that resist damage and vandalism)
• Exterior components exposed to varied weather conditions

A notable case study is the Hong Kong MTR system, which replaced traditional flooring materials with embossed stainless steel in high-traffic stations, resulting in a 70% reduction in maintenance costs and improved safety metrics due to consistent slip resistance even during monsoon season when stations experience significant water ingress.

Food Processing and Commercial Kitchens

Few environments test materials as rigorously as food processing facilities, where embossed stainless steel must contend with:

• Frequent cleaning with aggressive chemicals
• Temperature fluctuations
• Physical impacts from equipment and tools
• Strict hygiene requirements

A large dairy processing facility in Wisconsin documented an 85% reduction in floor-related maintenance after installing embossed stainless steel flooring with a specialized anti-slip pattern. The plant manager reported, “Beyond the obvious safety improvements, we’ve eliminated the periodic resurfacing requirements that disrupted production with our previous flooring system.”

Healthcare Applications

The healthcare sector increasingly specifies embossed stainless steel for:

A recently completed hospital in Singapore incorporated embossed stainless steel wall protection in corridors and patient transport areas, reporting a 40% reduction in wall damage and associated repair costs compared to previously used materials.

Industrial Flooring

Perhaps the original application for embossed stainless steel, industrial flooring continues to benefit from advances in pattern design and material performance. Modern manufacturing facilities, particularly in electronics, pharmaceutical, and food sectors, utilize embossed stainless steel flooring for:

1. Electrostatic discharge control
2. Chemical containment
3. Microbial control
4. Long-term durability under heavy equipment

A pharmaceutical manufacturing facility I visited had installed embossed stainless steel flooring in their aseptic processing areas fifteen years earlier. Despite constant use and regular cleaning with hydrogen peroxide vapor, the surfaces showed minimal wear and maintained their original slip resistance characteristics.

Maintenance and Longevity Considerations

The exceptional durability of embossed stainless steel represents one of its primary advantages, but maximizing service life requires appropriate maintenance protocols tailored to specific environments and applications. Understanding these considerations helps ensure optimal long-term performance.

Contrary to popular belief, stainless steel does require maintenance—it’s stain-resistant, not stain-proof. For embossed stainless steel, the textured surface introduces both advantages and challenges for cleaning and maintenance. The embossing can hide minor scratches and blemishes, but it also creates recessed areas where contaminants might accumulate if not properly addressed.

Basic maintenance practices for embossed stainless steel include:

Regular Cleaning: The frequency depends entirely on the environment. In food processing applications, daily cleaning is standard, while architectural installations might require only periodic attention. Using the correct cleaning agents is crucial—mild detergents are typically sufficient, while abrasive cleaners can damage the passive layer that provides corrosion resistance.

Directional Cleaning: For patterns with a directional element, cleaning should follow the pattern direction to be most effective. I’ve observed maintenance teams struggling with circular patterns until they adopted a spiral cleaning motion that proved far more efficient at removing residues from the textured surface.

Specialized Approaches for Different Environments:

• Marine environments: Regular freshwater rinsing helps remove salt deposits that can lead to pitting corrosion
• Industrial settings: Prompt cleaning of chemical spills prevents long-term damage
• Public spaces: Periodic disinfection may be required in addition to aesthetic cleaning

A facility manager at a coastal resort shared his experience: “We initially installed embossed stainless steel exterior cladding without understanding the maintenance requirements for our saltwater environment. After experiencing some early corrosion issues, we implemented a quarterly freshwater washing program. Ten years later, the panels look nearly new.”

The relationship between pattern selection and maintenance requirements deserves careful consideration. Deeper patterns with sharp recesses can be more challenging to clean but may hide damage better, while shallower patterns with rounded features generally offer easier maintenance but show wear more readily.

For high-traffic flooring applications, periodic inspection for loose fasteners or edge lifting is recommended, as early intervention prevents more significant issues. An industrial safety consultant noted, “The most common failure point for embossed stainless steel flooring isn’t the material itself but the attachment system. Regular inspection and maintenance of fasteners can extend service life indefinitely.”

The expected service life of properly maintained embossed stainless steel typically exceeds 30 years for most applications, with architectural installations often lasting 50+ years without significant degradation. This exceptional longevity contributes to favorable lifecycle cost analyses despite higher initial investment compared to alternative materials.

In environments with particularly aggressive conditions, sacrificial anodes or specialized coatings may be employed to further extend service life. A process engineer at a chemical manufacturing facility explained their approach: “We’ve installed impressed current cathodic protection systems for our embossed stainless steel sumps and containment areas, which has eliminated the localized corrosion we previously experienced at weld seams and corners.”

Selection Criteria and Design Considerations

Selecting the optimal embossed stainless steel for a specific application requires balancing numerous factors spanning technical requirements, aesthetic considerations, and economic constraints. This decision-making process benefits from a structured approach addressing key variables.

Grade Selection

The appropriate stainless steel grade forms the foundation of all other decisions. Consider:

• Corrosion environment: For exterior applications in coastal areas or industrial settings, 316/316L provides superior resistance to chlorides and industrial pollutants compared to 304/304L
• Temperature exposure: Applications experiencing thermal cycling or extreme temperatures may require specialized grades like 309/310 for high temperatures or nitrogen-enhanced grades for cryogenic environments
• Regulatory requirements: Food contact applications typically require 304 or 316 grades that comply with FDA and NSF standards
• Magnetic requirements: If non-magnetic properties are needed, austenitic grades (300 series) are required rather than ferritic (400 series)

Pattern Selection Criteria

The pattern choice should reflect both aesthetic intent and functional requirements:

1. Slip resistance needs: Deeper, more angular patterns provide better traction but may collect more debris
2. Cleaning requirements: Environments requiring frequent sanitization benefit from patterns without sharp recesses
3. Light reflection: Consider how different patterns scatter or direct light in the intended installation
4. Visual scale: Pattern size should relate appropriately to the viewing distance and overall dimension of the installation

Thickness and Dimensional Considerations

Base material thickness affects multiple performance aspects:

• Structural requirements: Load-bearing applications require engineering analysis considering both the base material thickness and the effective reduction from embossing
• Formability: If post-embossing forming is required, thinner gauges typically provide better formability
• Sound dampening: Thicker materials offer better acoustic performance when embossed
• Heat dissipation: For thermal applications, thickness affects heat transfer characteristics

Fabrication Implications

The selected embossed product must align with planned fabrication methods:

• Welding considerations: Embossed surfaces present challenges for welding—joints typically require planning to position welds in non-embossed areas or edges
• Forming limitations: Most embossed materials cannot undergo significant forming without distorting the pattern
• Cutting methods: Water jet or laser cutting generally produces better results than mechanical shearing for embossed materials
• Edge treatments: Standard edge conditions may require modification when working with embossed materials

A restaurant equipment designer shared an insight from experience: “We’ve learned to design our embossed stainless steel components with welding and assembly in mind from the start. Setting aside flat margins for joins and connections saves tremendous fabrication headaches later.”

Installation and Integration

Successful implementation requires attention to:

• Expansion and contraction: Thermal movement must be accommodated in the mounting system
• Galvanic isolation: When combining stainless steel with dissimilar metals, electrical isolation prevents galvanic corrosion
• Edge and transition details: The interface between embossed and non-embossed surfaces requires careful detailing
• Fastener selection: Exposed fasteners should match the corrosion resistance of the embossed material

Economic Evaluation

While initial cost often drives material selection, a more comprehensive approach considers:

• Installation efficiency: Some embossed products may offer faster installation, offsetting higher material costs
• Maintenance requirements: Lower maintenance needs reduce lifetime operating costs
• Service life expectations: Longer-lasting materials amortize initial costs over extended periods
• Replacement disruption costs: In critical facilities, the operational disruption during replacement may far outweigh material cost differences

During a recent renovation project, I observed a facility manager advocating successfully for embossed stainless steel despite its higher initial cost. Their persuasive argument centered on documented maintenance savings from similar installations and the operational disruption that would result from more frequent replacements of alternative materials.

The Future of Embossed Stainless Steel

The evolution of embossed stainless steel continues to accelerate, driven by technological innovations, emerging design trends, and increasing performance demands across industries. Understanding these developments provides valuable context for current specification decisions.

Several significant trends are reshaping this material category:

Advanced Manufacturing Techniques

Digital manufacturing technologies are transforming embossing capabilities. Computer-controlled variable-depth embossing now enables gradient patterns that transition from deep to shallow, creating unique visual effects while optimizing functional performance. A metallurgical engineer developing these systems explained, “We’re moving beyond binary thinking where a surface is either embossed or not—instead creating continuously variable textures that can be precisely tuned for specific performance characteristics.”

Similarly, multi-stage processing that combines embossing with other surface treatments is gaining traction. Treatments like selective polishing or localized color application create hybrid surfaces with differentiated zones serving various functional and aesthetic purposes.

Sustainability Considerations

The environmental aspects of embossed stainless steel are receiving increased attention:

1. Lifecycle analysis: Studies confirm that the exceptional longevity of stainless steel often offsets the higher embodied energy compared to alternative materials
2. Recycled content: Manufacturers increasingly specify and certify minimum recycled content percentages for stainless steel base materials
3. End-of-life reclamation: The value of stainless steel scrap incentivizes recycling, with recovery rates exceeding 85% in most developed markets

A sustainability consultant I interviewed noted, “The embossing process itself adds minimal environmental impact compared to the base material production, while potentially extending useful life—creating a net positive in most applications.”

Emerging Design Applications

Architects and designers continue to discover new applications for embossed stainless steel:

• Acoustic design: Specialized embossed patterns developed specifically for sound diffusion and absorption
• Integration with lighting: Embossed patterns designed to interact with LED lighting systems, creating programmable visual effects
• Biophilic patterns: Nature-inspired embossed designs that satisfy the growing interest in biophilic design principles

Technical Innovations

Research continues to expand performance boundaries:

• Superhydrophobic surfaces: Embossed patterns at both macro and micro scales creating water-repelling properties
• Antimicrobial enhancements: Copper-alloy additions or surface treatments that leverage the texture of embossed patterns to enhance antimicrobial effectiveness
• Thermal management: Engineered patterns optimized for specific heat transfer characteristics

Market Trends

The global market for embossed stainless steel continues to grow at approximately 5-7% annually, with particular strength in:

• Healthcare applications, driven by increasing focus on infection control
• Transportation infrastructure, particularly in rapidly developing urban centers
• Food processing facilities, where regulatory requirements drive material selection
• Architectural applications, especially in premium commercial and institutional projects

As manufacturing companies face increasing pressure to control long-term operating costs, the initial investment in quality materials like embossed stainless steel becomes easier to justify through comprehensive lifecycle cost analysis.

While production has historically been concentrated in Europe, Japan, and North America, significant capacity expansion is occurring in China, India, and Southeast Asia, potentially affecting global pricing and availability patterns in coming years.

The enduring appeal and expanding capabilities of embossed stainless steel ensure its continued relevance across diverse applications—balancing timeless performance characteristics with ongoing innovation to address emerging requirements and preferences.

Frequently Asked Questions of Embossed Stainless Steel Sheets

Q: What are Embossed Stainless Steel Sheets?
A: Embossed Stainless Steel Sheets are specially treated stainless steel sheets that have been processed to include raised or recessed patterns on their surface. These patterns are created through embossing techniques such as roll embossing or heat embossing, enhancing the visual appeal and providing functional benefits like increased grip and slip resistance. Commonly used grades include 304 and 316 stainless steel, known for their corrosion resistance and durability[1][2][5].

Q: How are Embossed Stainless Steel Sheets produced?
A: The production of Embossed Stainless Steel Sheets involves several key steps. First, the stainless steel sheets undergo surface preparation, which includes degreasing and rinsing. Next, they are processed using embossing machines that apply mechanical pressure to create patterns. The embossed sheets may undergo additional fine processing, cleaning, and polishing to enhance their appearance[1][4].

Q: What are the typical applications of Embossed Stainless Steel Sheets?
A: Embossed Stainless Steel Sheets have a wide range of applications due to their versatility. They are commonly used in architectural and interior design for wall panels, elevator doors, and decorative screens. Additionally, they are utilized in industries such as automotive and food processing due to their durability and corrosion resistance[2][4].

Q: What are the advantages of using Embossed Stainless Steel Sheets?
A: Embossed Stainless Steel Sheets offer several advantages:

• Enhanced Aesthetic Appeal: They add texture and visual interest to surfaces.
• Improved Slip Resistance: Embossed patterns provide enhanced grip, reducing slip hazards.
• Increased Durability: The embossed design helps mask scratches and dents, improving longevity.
• Easy Maintenance: The embossed pattern reduces the visibility of fingerprints and smudges[2][4].

Q: Can Embossed Stainless Steel Sheets be customized?
A: Yes, Embossed Stainless Steel Sheets can be customized with specific patterns or designs. Manufacturers can create custom patterns using various techniques, including laser engraving for intricate designs. This allows designers to create unique materials that meet specific project requirements[3][4].

Related posts:

Perforated Stainless Steel Sheets 304 Stainless Steel Sheets 201 Stainless Steel Sheets Stainless Steel Flat Bars
