Elevating Architectural Design: The Art and Science of Glass Standoff Systems
The first time I walked into the renovated lobby of Seattle’s Rainier Tower, I was struck not by the grand scale or luxurious finishes, but by something seemingly minimal yet profoundly impactful: the floating glass directory panels mounted with sleek metallic hardware. These unobtrusive components—stainless steel standoff systems—were doing far more than simply holding glass in place. They were fundamental to the space’s open, airy aesthetic.
Glass standoff mounting systems represent that rare intersection where structural engineering meets visual elegance. These sophisticated hardware solutions create the illusion of floating glass panels while providing robust structural support. The standoffs themselves—typically cylindrical metal components—maintain a precise distance between the wall and the glass, creating depth and visual interest while serving crucial functional purposes.
What makes these systems particularly interesting is their dual nature: they’re simultaneously structural necessities and design elements. The rise of standoff systems coincides with architectural trends emphasizing transparency, minimalism, and the honest expression of materials. As buildings continue to evolve toward more open, light-filled spaces, these modest hardware components have taken on outsized importance.
The quality of these systems varies dramatically across manufacturers, with premium options from companies like E-Sang offering superior finishing, load capacity, and design versatility compared to budget alternatives. This distinction becomes particularly important in high-traffic areas or premium installations where both aesthetics and durability are paramount.
The Anatomy of Standoff Systems: Components and Materials

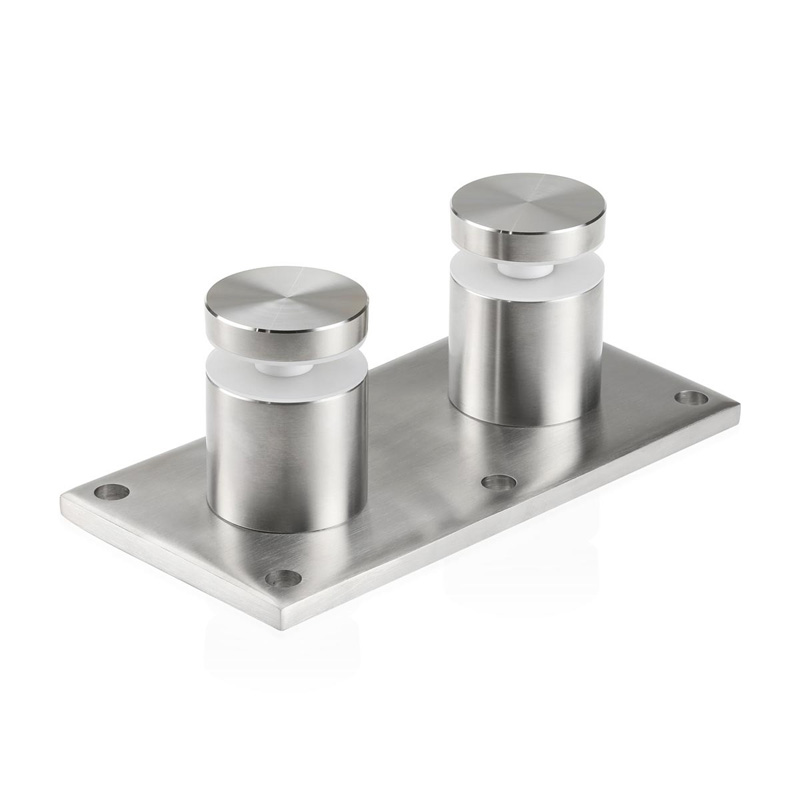

Unlike traditional framing methods that hide mounting hardware, standoff systems proudly display their components as part of the design language. A typical system consists of several key elements working in concert:
Standoff Caps – These visible end pieces provide the finished appearance and are available in various shapes (flat, dome, cone) and finishes (polished, brushed, satin).
Barrels – The main body of the standoff that determines the distance between the mounting surface and the glass panel. Barrel lengths typically range from 1/2″ to 3″ depending on the desired projection.
Through-Glass Fasteners – Components that pass through pre-drilled holes in the glass to connect with the barrel and cap.
Wall Anchors – Hardware that secures the system to the supporting structure, varying based on substrate material (drywall, concrete, wood, etc.).
The material composition dramatically impacts both performance and aesthetics. While aluminum systems offer cost advantages, stainless steel variants provide superior benefits:
| Material Grade | Corrosion Resistance | Load Capacity | Typical Applications | Price Range |
|---|---|---|---|---|
| 304 Stainless Steel | Good (indoor) | Medium-High | Interior office spaces, retail displays | Moderate |
| 316 Stainless Steel | Excellent (indoor/outdoor) | High | Exterior signage, marine environments, pool enclosures | High |
| 2205 Duplex Steel | Superior | Very High | High-security installations, heavy panels | Premium |
| Aluminum | Limited | Low-Medium | Temporary displays, lightweight applications | Economy |
When examining a high-performance standoff system, you’ll notice the precision machining that creates perfect edges without visible tool marks. This level of finish doesn’t just influence appearance—it actually affects functional performance by eliminating micro-abrasions that could become corrosion points over time.
During a recent conversation with architectural hardware specialist Thomas Reynolds, he emphasized that “the unseen engineering aspects of standoff systems often differentiate premium products from budget options. Look for things like internal threading quality, edge finishing, and the precision of the machining. These details directly impact installation ease and long-term performance.”
Performance Benefits and Application Versatility
The practical advantages of stainless steel glass standoff systems extend far beyond their striking appearance. Having worked with various mounting solutions across dozens of projects, I’ve found these systems consistently outperform alternative methods in several key areas.
Structural Integrity – Quality stainless steel standoffs distribute load forces efficiently across mounting points, allowing for secure installation even with heavy glass panels. This becomes particularly important in public spaces where safety considerations are paramount. I recall a museum installation where we needed to mount 1/2″ thick glass information panels that weighed nearly 100 pounds each—only precision-engineered standoffs provided the necessary confidence for such an application.
Design Flexibility – The standoff approach allows for creative panel arrangements that would be impossible with traditional framing. Panels can be stacked, staggered, or arranged in dynamic configurations without visible supports disturbing the visual flow.
Ease of Updates – In commercial environments where information changes frequently, standoff-mounted panels offer significant advantages. The accessibility of these systems makes panel replacement straightforward without disturbing the entire installation—a particular benefit for retail displays and corporate signage.
Material Compatibility – While most commonly used with glass, these systems work equally well with acrylic, composite panels, wood veneers, and even certain metal sheets. This versatility opens up fascinating design possibilities for mixed-material installations.
Applications for these systems have expanded dramatically in recent years:
| Application | Typical Panel Size | Recommended Standoff Configuration | Special Considerations |
|---|---|---|---|
| Wayfinding Signage | 12″×18″ to 24″×36″ | 4-point mounting, 3/4″ diameter caps | ADA compliance for tactile elements |
| Office Partitions | 48″×60″ to 48″×96″ | 6-8 point mounting, 1″ diameter caps | Acoustic properties and privacy needs |
| Museum Displays | Varies widely | Custom configurations with security features | UV-filtering glass requirements |
| Retail Product Showcases | 18″×24″ to 36″×48″ | 4-point mounting with specialty lighting integration | Integration with digital displays |
| Architectural Features | Custom, often large | Engineered systems with structural calculations | Building code compliance for safety |
During installation of a particularly challenging curved glass feature wall, I discovered the importance of precision placement. Even minor deviations in standoff positioning can create visible stress patterns in the glass—something only apparent once the installation is complete. This experience taught me to always use mounting templates and verify measurements multiple times before drilling.
Technical Specifications and Installation Considerations
The technical aspects of standoff systems require careful attention during both specification and installation phases. Working closely with an experienced fabricator can help navigate these requirements successfully.
Glass compatibility represents a primary concern. Tempered glass is the minimum requirement for standoff applications, with laminated glass often preferred for safety. Glass thickness directly correlates with the maximum panel size and standoff spacing:
- 3/8″ (10mm) glass: Suitable for panels up to approximately 15 square feet
- 1/2″ (12mm) glass: Accommodates panels up to approximately 25 square feet
- 3/4″ (19mm) glass: Required for larger panels or high-stress applications
The hole specifications are equally critical. Industry specialist Sarah Chen notes, “Proper glass hole diameter is perhaps the most overlooked aspect of these installations. The hole should be at least 1/8″ larger than the barrel diameter to prevent glass stress and potential breakage.” This clearance allows for thermal expansion and minor adjustment during installation.
Installation proceeds through several precise stages:
- Template creation and verification
- Precise marking of all mounting points
- Installation of wall anchors appropriate to substrate
- Pre-assembly of standoff components
- Careful glass positioning with temporary supports
- Final tightening to specified torque values
Common installation challenges include:
Wall Surface Irregularities – Most walls aren’t perfectly flat, which can create stress points on the glass. Using slightly longer barrels provides adjustment room to accommodate surface variations.
Alignment Precision – Multiple-panel installations require exceptional alignment accuracy. Laser levels and custom templates help ensure perfect positioning.
Torque Control – Over-tightening can damage both the glass and hardware. Quality installers use calibrated torque drivers to achieve consistent, safe tension.
One often overlooked consideration is the substrate’s load-bearing capacity. During a hotel renovation project, we discovered that the specified mounting wall couldn’t adequately support the weight of large decorative glass panels. This late-stage finding required significant redesign. As a hard-learned lesson, always verify the structural capacity of mounting surfaces before finalizing designs involving substantial glass elements.
Design Considerations and Aesthetic Impact
The visual impact of standoff systems extends far beyond their functional role. These components act as punctuation marks in the architectural language, creating rhythm and emphasis across surfaces. When I consult with designers, I often point out how standoff placement fundamentally influences the viewer’s perception of the space.
The diameter of standoff caps dramatically affects visual weight. Smaller 1/2″ caps create a more delicate, precise impression, while larger 1″ or 1-1/4″ caps make a bolder statement. The finish selection further refines this impact—polished stainless creates brilliant reflective points, while brushed finishes offer subtle, sophisticated accents.
Spacing decisions balance aesthetic and structural requirements. While engineering calculations determine minimum requirements, designers often adjust the pattern for visual effect. Equally spaced standoffs create formal, ordered impressions, while deliberate asymmetry can generate more dynamic, contemporary feels.
Color coordination presents interesting opportunities. While natural stainless remains the most popular choice, some manufacturers offer PVD-coated variants in brass, bronze, black, or custom colors. These options allow hardware to either contrast dramatically or blend seamlessly with surrounding elements.
Lighting interaction deserves particular attention. Standoff systems create natural shadows and reflections that change throughout the day. Strategic placement of artificial lighting can enhance these effects—grazing light across textured glass between standoffs creates particularly striking results. During an upscale residential project in Chicago, we positioned miniature LED spotlights to cast dramatic shadows from the standoffs onto adjacent surfaces, transforming simple mounting hardware into a sophisticated lighting feature.
Interior designer Maria Gonzalez suggests considering how these systems affect spatial perception: “Standoff-mounted glass creates layers of transparency that can make small spaces feel larger and more open. The visual depth added by even a few inches of projection can dramatically transform a corridor or entryway.” This effect becomes particularly valuable in urban spaces where maximizing perceived space holds premium value.
Maintenance Requirements and Longevity Factors
The long-term performance of standoff systems depends significantly on both initial quality and ongoing maintenance. Having revisited installations after several years in service, I’ve observed dramatic differences in condition based on both factors.
Stainless steel’s corrosion resistance makes it ideal for these applications, but not all stainless is created equal. Marine environments or outdoor installations demand 316-grade stainless with its higher molybdenum content for enhanced corrosion resistance. Even indoor systems benefit from 316-grade in high-humidity environments like spas or indoor pools.
Regular maintenance should include:
- Periodic inspection of all fasteners for tightness
- Cleaning of all visible surfaces with appropriate non-abrasive cleaners
- Checking glass for any stress cracks or chips around mounting holes
- Verifying that silicone gaskets remain intact and functional
One particularly important consideration is galvanic corrosion potential when different metals come into contact. This electrochemical reaction can cause accelerated deterioration, especially in humid environments. Quality systems use compatible metals throughout or incorporate isolation components to prevent this interaction.
Expected lifecycle varies significantly based on quality and environment:
| System Quality | Indoor Lifespan | Outdoor Lifespan (Protected) | Outdoor Lifespan (Exposed) | Maintenance Frequency |
|---|---|---|---|---|
| Premium Architectural Grade | 20+ years | 15-20 years | 10-15 years | Annually |
| Commercial Grade | 10-15 years | 8-12 years | 5-8 years | Every 6 months |
| Economy Grade | 5-8 years | 3-5 years | 2-3 years | Quarterly |
| *Data based on industry averages assuming proper installation and maintenance |
Some installations require special consideration. Historical preservation specialist William Martinez explains: “When installing standoff systems in historic buildings, we need to be particularly mindful of the substrate. Many older structures have plaster walls that require special anchoring solutions to distribute the load appropriately.”
I’ve found that the most common failure point isn’t the standoff itself but rather the wall anchoring. During a post-installation evaluation of a failed system, we discovered the contractor had used inadequate anchors for the substrate type. The lesson is clear: even the finest standoff hardware can’t compensate for improper installation methods.
Innovations and Emerging Trends
The standoff hardware market continues to evolve with notable technological advancements. Recent innovations focus on enhancing both functionality and aesthetic possibilities.
Integrated Lighting Systems – Newer standoff designs incorporate fiber optic or LED elements within the hardware itself, creating dramatic edge-lighting effects on glass panels. I recently examined a system that channeled light through the barrel to illuminate the glass edge with color-changing capability—a remarkable fusion of function and ambiance.
Adjustable Systems – Traditional standoffs required perfect alignment during installation. New articulating designs allow for post-installation adjustment, making alignment significantly easier and accommodating subtle building movements over time.
Sustainable Materials – The push toward environmental responsibility has introduced recycled-content stainless steel options with up to 80% post-consumer material. These provide identical performance characteristics while reducing environmental impact.
Digital Integration – The most cutting-edge systems now incorporate technology directly into the mounting hardware. One fascinating example includes standoffs with built-in proximity sensors that trigger digital content on adjacent screens when viewers approach.
Simplified Installation – Recognizing installation challenges, manufacturers have developed systems with self-aligning features and installation-friendly designs that reduce the specialized skills required.
The industry’s direction suggests continued refinement toward systems that offer greater creative freedom with less technical limitation. Architectural technologist Priya Sharma predicts: “The next generation of standoff systems will likely incorporate smart materials that respond to environmental conditions, potentially darkening or lightening glass panels based on sunlight exposure or automatically adjusting tension to compensate for building movement.”
Some forward-thinking designers are already experimenting with biomimetic standoff designs inspired by natural structures. These organically-shaped systems challenge the traditional cylindrical form while offering potentially superior load distribution.
During a recent architectural conference, I was particularly intrigued by prototype systems using magnetically-assisted mounting that eliminates the need for drilling glass entirely. Though currently limited to lightweight applications, this technology suggests exciting possibilities for damage-free, reconfigurable installations.
Selection Criteria and Implementation Recommendations
After countless project consultations, I’ve developed a systematic approach to specifying standoff systems that balances aesthetic goals, functional requirements, and budget realities.
Begin by clearly defining the installation environment. Indoor controlled environments permit more material flexibility, while outdoor or high-moisture settings demand marine-grade components. The environment also influences finish selection—highly polished finishes require more maintenance in high-touch areas or corrosive environments.
Consider the installed lifespan expectations. Temporary installations (under 5 years) might justify economy-grade hardware, while permanent architectural features demand investment in premium systems with better corrosion resistance and load capacity.
Sample evaluation provides essential insight. When comparing systems from different manufacturers, examine these key indicators:
- Edge finishing quality (absence of machining marks)
- Thread precision and smoothness
- Uniformity of finish application
- Weight and material density
- Quality of included fasteners and gaskets
For projects with tight timelines, supply chain reliability becomes crucial. Domestic manufacturers typically offer faster lead times and replacement availability, though often at premium pricing. Global sourcing can reduce costs but introduces potential delays and compatibility issues.
Most importantly, view standoff selection as an integrated system decision rather than a component choice. The relationship between the standoffs, glass specifications, mounting substrate, and overall design intent requires holistic consideration.
As a practical guideline, I recommend:
- Specify 316-grade stainless for any installation near water or outdoors
- Choose barrel length at least 1/4″ longer than minimal requirements to allow adjustment flexibility
- Verify substrate load capacity before finalizing glass specifications
- Use templates for all installations, regardless of scale
- Select cap diameter proportional to panel size for visual balance
- Consider the entire viewer experience, including approach angles and lighting conditions
When working with contractors unfamiliar with these systems, provide detailed specification sheets and installation guides. The small additional effort in documentation can prevent costly installation errors and ensure the design intent translates faithfully to the finished installation.
During my most recent museum project, we created a full-scale mockup of each unique standoff configuration. This seemingly excessive step identified several potential issues before installation and ultimately saved significant time and expense during the actual implementation. For complex or high-profile installations, such prototyping proves invaluable.
Beyond Function: Standoff Systems as Design Elements
What continues to fascinate me about stainless steel glass standoff systems is their evolution from purely functional hardware into expressive design elements in their own right. The best designers now consider the standoffs not merely as necessary supports but as integral components of the visual composition.
In thoughtfully executed projects, standoff patterns establish rhythm and movement across surfaces. They can emphasize horizontal flow, create vertical emphasis, or establish focal points through deliberate clustering. The negative space between standoffs becomes as important as the hardware itself.
The interplay between opacity and transparency creates particularly interesting effects. One memorable installation featured sandblasted glass patterns precisely aligned with standoff positions, creating an integrated composition where hardware and graphic elements worked in harmony.
Material contrast offers another rich design opportunity. The juxtaposition of cool, precise stainless steel against warm materials like wood or textured stone creates compelling visual tension. Similarly, pairing industrial standoffs with handcrafted glass introduces an interesting dialogue between mechanical precision and organic artisanship.
Scale manipulation provides yet another creative avenue. Traditionally sized standoffs supporting dramatically oversized or unusually small panels create unexpected proportional relationships that draw attention and interest. A boutique hotel in Portland used this approach to striking effect, mounting tiny decorative glass elements on standard standoffs to create an installation that appeared to defy physical logic.
As we look toward future applications, the boundary between structural necessity and pure artistic expression continues to blur. Standoff systems no longer merely support glass panels—they actively participate in creating meaningful, emotionally resonant spaces that challenge our expectations and enhance our experience of the built environment.
Perhaps what makes these systems particularly relevant to contemporary design is their honest expression of function. In an era that increasingly values authenticity and material truth, the visible hardware of standoff systems represents a refreshingly direct approach to connecting elements. Their continued evolution promises exciting possibilities for designers committed to pushing the boundaries of architectural expression.
Frequently Asked Questions about Stainless Steel Glass Standoff Systems
Q: What are Stainless Steel Glass Standoff Systems used for?
A: Stainless Steel Glass Standoff Systems are primarily used in architectural and interior design applications, such as staircases, pools, fences, and railings. They provide a sleek, minimalist aesthetic while securing glass panels in place, offering both style and functionality. These systems are popular for indoor and outdoor settings due to their durability and resistance to weather conditions.
Q: What materials are commonly used in Stainless Steel Glass Standoff Systems?
A: The standoffs in these systems are typically made of high-quality stainless steel, such as T304 or 316 grades, which provide excellent corrosion resistance and durability. The glass panels used are often tempered or laminated glass, offering increased strength and safety compared to regular glass.
Q: How are Stainless Steel Glass Standoff Systems installed?
A: The installation of these systems involves several steps:
- Initial planning: Determine the layout and size of glass panels and standoffs.
- Preparing materials: Cut glass panels and prepare standoffs.
- Drilling and mounting: Drill holes in the glass and mounting surface for the standoffs.
- Final adjustments: Ensure panels are level and securely fastened.
Q: What are the benefits of using Stainless Steel Glass Standoff Systems?
A: The key benefits include a minimalist design that complements various architectural styles, high durability due to the use of stainless steel and tempered glass, and ease of installation. These systems also provide a clean visual effect by keeping the glass panels secure without obstructing the view.
Q: Can Stainless Steel Glass Standoff Systems be customized for specific projects?
A: Yes, many manufacturers offer customization options for Stainless Steel Glass Standoff Systems. Customizations can include bespoke designs, different finishes, or specific sizes to fit unique project needs. This flexibility makes them suitable for both residential and commercial environments.
Q: Are Stainless Steel Glass Standoff Systems safe for outdoor use?
A: Absolutely, Stainless Steel Glass Standoff Systems are suitable for outdoor use due to their rust and weather resistance. The stainless steel standoffs, especially those with a black powder coat, are designed to withstand harsh environmental conditions, ensuring durability and reliability in various climates.
