Understanding Stainless Steel U-Channels: Beyond the Basics
Last month, I found myself examining a corroded support structure in a coastal manufacturing facility. The carbon steel channels had deteriorated after just two years of exposure to salt air, causing safety concerns and substantial repair costs. This situation perfectly illustrates why material selection matters so critically in structural components – and why stainless steel U-channels often emerge as the superior option for challenging environments.

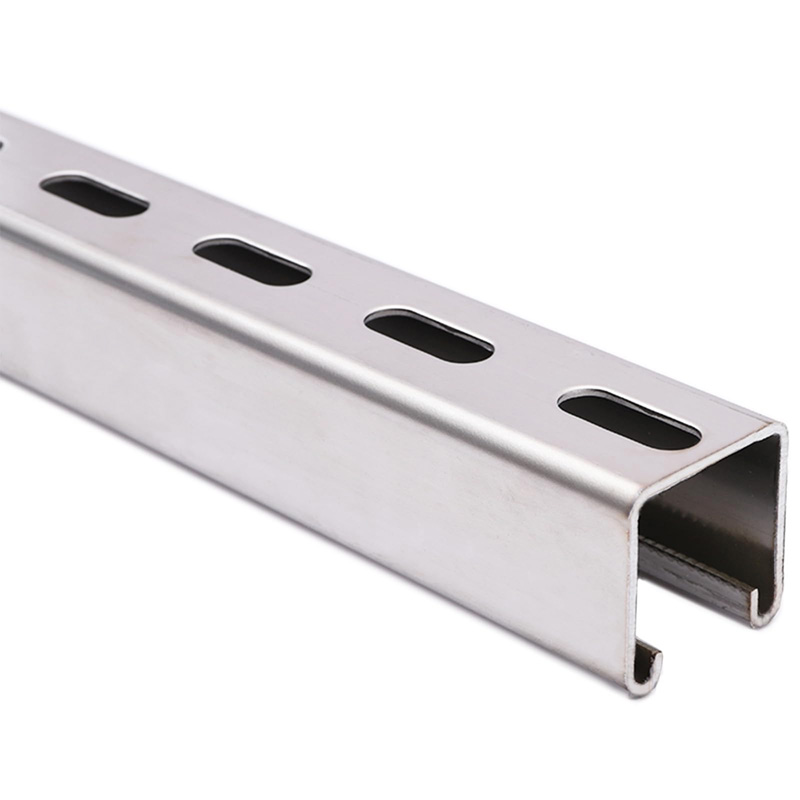

Stainless steel U-channels are structural elements shaped like the letter “U” – featuring a base and two parallel sides extending at right angles. While this basic description seems straightforward, the engineering behind these components is remarkably sophisticated. These profiles are manufactured through a process called cold forming or extrusion, where stainless steel sheets are progressively bent to create the characteristic U-shape while maintaining precise dimensional tolerances.
What distinguishes stainless steel U-channels from alternatives is their composition. They typically contain a minimum of 10.5% chromium, which forms a self-healing passive oxide layer on the surface. This microscopic shield regenerates when damaged, providing remarkable corrosion resistance without additional coatings or treatments. Depending on the specific grade, these channels may also contain varying percentages of nickel, molybdenum, and other elements that enhance particular properties.
The dimensional variety available is substantial. Standard stainless steel U-channels range from tiny 1/4″ profiles used in delicate applications to massive 12″ channels capable of supporting significant structural loads. Wall thickness similarly varies from thin 1/16″ channels for light-duty applications to substantial 1/2″ profiles for heavy industrial use. This versatility makes them suitable for applications ranging from decorative trim to critical structural supports.
When examining the market, I’ve observed that most stainless U-channels are produced in grades 304 and 316, though specialized applications might call for other grades. The 304 grade (containing approximately 18% chromium and 8% nickel) provides excellent general corrosion resistance suitable for many environments, while 316 grade adds molybdenum for superior resistance to chlorides and acids – ideal for marine or chemical processing environments.
Applications That Transform Industries
During a recent tour of a food processing facility in Wisconsin, I was struck by how ubiquitous stainless steel U-channels had become. From supporting conveyor systems to framing inspection windows and reinforcing equipment mounts, these seemingly simple components were integral to operations. “We couldn’t meet sanitation requirements with any other material,” explained the facility manager. “The channels’ smooth surfaces, corrosion resistance, and cleanability are non-negotiable in food safety.”
This observation reflects just one sector where these components prove invaluable. In architectural applications, stainless steel U-channels have revolutionized contemporary design. They provide sleek framing for glass balustrades and partitions, creating the impression that glass sheets are floating without visible support. The channels can be recessed into floors or walls, with only a minimal reveal, allowing architects to achieve clean, minimalist aesthetics while meeting structural requirements.
The marine industry particularly benefits from 316-grade stainless U-channels. Their exceptional resistance to salt corrosion makes them ideal for railings, equipment mounting, and structural elements on vessels and in harbor infrastructures. Unlike galvanized alternatives that eventually fail in marine environments, properly specified stainless channels often outlast the structures they’re installed in.
Healthcare facilities represent another critical application. The inherent antimicrobial properties of certain stainless steel surfaces, combined with their cleanability and compatibility with disinfectants, make U-channels ideal for equipment mounting, wall protection, and architectural elements in hospitals and laboratories. During an installation project at a major medical center, I noted how specifications explicitly required not just stainless steel, but specifically channels with electropolished finishes to minimize bacterial harborage.
In the renewable energy sector, stainless steel U-channels provide mounting solutions for solar panels, particularly in coastal or industrial environments where corrosion resistance is paramount. Their durability ensures decades of reliable service, matching the expected lifespan of the solar installation itself.
The construction industry employs these profiles for both functional and decorative purposes. From expansion joint covers and window frames to decorative trim and shower door tracks, stainless U-channels solve numerous design challenges. Their ability to withstand weather extremes while maintaining dimensional stability makes them particularly valuable for exterior applications.
Less obvious but equally important applications include:
- Laboratory environments where chemical resistance is crucial
- Pharmaceutical manufacturing facilities requiring hygienic design
- Wastewater treatment plants exposed to highly corrosive conditions
- Food retail displays requiring both aesthetics and sanitization
- Transportation infrastructure such as pedestrian bridges and transit stations
Selecting the Right Stainless Steel U-Channel: Critical Factors
Choosing appropriate stainless steel U-channels involves more nuance than many realize. During a consultation with a prominent structural engineer, Dr. Ellen Marquez, she emphasized that inappropriate selection accounts for the majority of premature failures. “Engineers often default to 304 stainless without considering specific environmental factors,” she noted. “In one waterfront project, we specified 316L with electro-polished finish instead, which proved crucial when chloride levels tested higher than anticipated.”
The first selection criterion is typically the environment where the channel will be installed. Indoor applications with normal humidity may function perfectly with 304 grade stainless, while outdoor applications near coastlines or industrial areas with airborne chemicals generally require 316 grade or higher. For extremely corrosive environments, specialized grades like 2205 duplex stainless might be necessary. I once observed a facility that processes citric acid where even 316 stainless showed etching after several years – they ultimately switched to a higher molybdenum alloy.
Load-bearing requirements represent another critical consideration. The load capacity of a stainless steel U-channel depends on several factors:
| Factor | Influence on Load Capacity | Typical Considerations |
|---|---|---|
| Material Thickness | Directly proportional to strength | Ranges from 1/16″ to 1/2″ in standard profiles |
| Channel Dimensions | Larger dimensions generally provide greater strength | Web height and flange width affect load distribution |
| Grade of Stainless | Yield strength varies by grade | 316 has slightly lower yield strength than 304 |
| Load Distribution | Point loads vs. distributed loads | Concentrated loads require additional reinforcement |
| Span Distance | Inversely related to load capacity | Longer spans reduce maximum load capacity |
| Temperature | Elevated temperatures reduce strength | Critical in applications above 800°F |
Aesthetic requirements often influence selection, particularly for architectural applications. Stainless U-channels are available in various finishes, including:
- #2B: A smooth, somewhat reflective finish suitable for many industrial applications
- #4: Brushed finish with visible grain, popular for architectural applications
- #8: Mirror-like highly polished surface for decorative applications
- Custom: Bead-blasted, engine-turned, or patterned finishes for specialized aesthetics
Fabrication requirements should not be overlooked. Stainless steel is notably harder to cut, drill, and form than carbon steel or aluminum. During a recent project, I underestimated the additional labor required for field modifications of stainless channels. The contractor had to procure specialized tools and allocate extra time, impacting the installation schedule. When complex fabrication is needed, consulting with the manufacturer about pre-fabrication options often proves more efficient.
Budget constraints inevitably influence selection. While stainless steel U-channels typically cost 3-5 times more than carbon steel equivalents initially, the total lifecycle cost analysis often tells a different story. A municipal project I consulted on compared materials for a waterfront walkway. The initial premium for stainless components was offset by eliminated painting and replacement costs over the 30-year analysis period, resulting in 22% lower lifetime costs.
Installation and Maintenance: Ensuring Longevity
The exceptional durability of stainless steel U-channels can be compromised by improper installation practices. This truth became painfully evident during a site assessment where premature corrosion had appeared along a stainless steel channel installation. The culprit? Steel particles embedded in the surface during cutting with the same tools used on carbon steel – a classic example of cross-contamination.
Preventing galvanic corrosion requires particular attention. When stainless steel U-channels contact dissimilar metals in the presence of moisture, they can form a galvanic cell, accelerating corrosion of the less noble metal and potentially damaging the stainless steel. Using appropriate isolation methods is critical:
| Method | Best Applications | Limitations |
|---|---|---|
| PTFE washers/bushings | Bolted connections, moderate loads | Can deform under extreme pressure |
| Neoprene gaskets | Large contact areas, weather exposure | May degrade with UV exposure and time |
| Plastic/nylon sleeves | Fastener isolation, vibrating assemblies | Limited temperature resistance |
| Specialized coatings | Complex geometries, architectural applications | Must remain intact to be effective |
| Designing to prevent water traps | All exterior applications | May limit design options |
Anchoring methods deserve careful consideration. Chemical anchors specifically formulated for stainless fasteners generally provide the most reliable connections to concrete or masonry. During a brewery installation project, we discovered that standard anchoring epoxy was incompatible with the cleaning chemicals used in the facility. Switching to a specialized chemical-resistant formula prevented costly failures.
When cutting stainless steel U-channels on-site, specialized tools make a significant difference. Dedicated cutting wheels for stainless steel, adequate cooling, and proper speed significantly reduce work hardening and thermal discoloration. I’ve found that investing in quality tools specifically for stainless work ultimately saves time and preserves material integrity.
Maintenance requirements, while minimal compared to other materials, still exist. Regular cleaning with appropriate methods prevents accumulation of contaminants that might eventually compromise the passive layer. In marine environments, quarterly fresh water rinsing removes salt deposits. For architectural applications in urban environments, periodic cleaning with mild detergent removes airborne pollutants that could otherwise cause surface staining.
Welding stainless steel U-channels requires specialized knowledge. As a materials specialist I consulted explained, “The higher thermal expansion and lower thermal conductivity of stainless steel compared to carbon steel means greater potential for warping during welding.” Using proper techniques (like intermittent welding, heat sinks, and appropriate filler metals) maintains both structural integrity and corrosion resistance.
Advantages and Limitations: A Balanced Perspective
The corrosion resistance of stainless steel U-channels represents their most celebrated advantage. In a revealing experiment at a materials testing laboratory, I observed identical U-channel profiles made from different materials exposed to salt spray testing. After 1,000 hours, the carbon steel channels showed extensive red rust despite their protective coating, aluminum channels displayed significant pitting, while 316 stainless channels remained virtually unchanged. This dramatic demonstration explains why critical applications increasingly specify stainless despite higher initial costs.
The strength-to-weight ratio presents another significant advantage. Stainless steel offers exceptional mechanical properties, allowing for thinner profiles that maintain required strength while reducing overall weight. This becomes particularly valuable in applications where structural load is a concern or where installation requires manual handling of components.
Aesthetic longevity distinguishes stainless steel U-channels in architectural applications. While anodized aluminum and painted steel eventually show wear, fading, or coating failure, properly specified stainless maintains its appearance for decades with minimal maintenance. A building I visited recently featured original stainless trim installed in the 1960s that still maintained its intended appearance with only routine cleaning.
Fire resistance provides an often-overlooked advantage. Unlike many materials that require additional treatments to meet fire codes, stainless steel U-channels are inherently non-combustible and maintain structural integrity at temperatures where aluminum would fail. This property simplifies compliance with building codes and safety regulations in public buildings.
However, these advantages come with tradeoffs. Cost represents the most significant limitation. Initial material costs for stainless steel U-channels typically range from 3-7 times higher than carbon steel equivalents, depending on grade and market conditions. This premium requires justification through lifecycle cost analysis or specific performance requirements.
Workability presents another challenge. Stainless steel work-hardens rapidly during fabrication, requiring specialized tools and techniques. Cutting, drilling, and forming operations take longer and consume more tooling compared to softer materials. During a recent retrofit project, the contractor had to revise their timeline after discovering how much longer stainless modifications took compared to their experience with carbon steel.
Weight can be problematic in certain applications. Stainless steel U-channels weigh approximately 7.92 g/cm³, making them significantly heavier than aluminum alternatives at 2.7 g/cm³. For applications where weight is a primary concern, such as mobile equipment or frequently adjusted components, this difference becomes significant despite the strength advantages.
Thermal conductivity represents both an advantage and limitation, depending on application. Stainless steel conducts heat poorly compared to aluminum or copper, making it excellent for thermal breaks but problematic when heat dissipation is desired. In an HVAC application I consulted on, this property necessitated design modifications to prevent overheating of components mounted to stainless channels.
Innovative Applications: Case Studies from the Field
A particularly illuminating example of innovative stainless steel U-channel application emerged during my visit to a coastal desalination plant. The facility had initially installed fiberglass-reinforced plastic channels for their seawater intake system, anticipating that even stainless steel would eventually succumb to the aggressive environment. After recurring failures, the engineering team redesigned using super duplex stainless U-channels (grade 2507) with specialized welding procedures. Five years later, the system operates flawlessly despite constant exposure to seawater, chlorides, and biological growth.
The architectural realm continues to push boundaries with these components. A notable museum expansion I studied incorporated custom-formed stainless U-channels with integrated LED lighting. The channels served triple duty: supporting glass panels, housing lighting systems, and creating a floating effect for display cases. The architect noted, “The material allowed us to achieve structural requirements while maintaining minimalist aesthetics. No other option would have worked.”
Healthcare environments demonstrate particularly valuable applications. A hospital renovation project utilized antimicrobial copper-alloy stainless steel U-channels for door frames and wall protection in high-risk areas. Research by the facility documented a 43% reduction in surface bacteria compared to standard stainless in identical applications – demonstrating how specialized alloy selection can enhance performance beyond standard expectations.
The food processing industry provided another compelling case study. A dairy processing facility replaced conventional support channels with custom-designed stainless U-channels featuring radiused internal corners and sloped surfaces that eliminated bacterial harborage points. The investment paid for itself within 18 months through reduced cleaning time and improved inspection results. The project engineer commented, “We’re now implementing similar profiles throughout our facilities globally based on these results.”
In transportation infrastructure, I observed an innovative application where stainless steel U-channels with integrated expansion capabilities were used for a pedestrian bridge over a causeway. The design accommodated thermal expansion and contraction while maintaining structural integrity in a highly corrosive environment. After seven years of service, inspection revealed no significant corrosion or structural issues despite constant exposure to salt spray, temperature fluctuations, and vibration.
The renewable energy sector demonstrates creative applications as well. A solar installation in the American Southwest utilized specially modified stainless U-channels with integrated cooling channels. The design allowed heat dissipation from high-efficiency panels, maintaining optimal operating temperatures without compromising structural support. The system demonstrated 4% higher annual energy production compared to conventional mounting systems in the same location.
These examples illustrate a common theme: while the basic U-channel form remains simple, customization and material selection create solutions for extraordinarily challenging applications. As one engineer aptly stated, “The U-channel is essentially a three-sided solution to countless problems.”
Future Trends and Emerging Innovations
The evolution of stainless steel U-channel technology continues at a surprising pace. Speaking with Dr. Rajiv Mishra, a metallurgist specializing in stainless steel development, I gained insight into emerging trends. “We’re seeing significant advancement in lean duplex grades that offer comparable corrosion resistance to 316L but with higher strength and lower nickel content,” he explained. “This addresses both cost volatility and performance requirements.”
Advanced manufacturing technologies are transforming production capabilities. 3D metal printing, while still relatively expensive for large structural elements, enables creation of specialized U-channel variations with internal features impossible to produce through conventional methods. A research project I recently reviewed demonstrated channels with integrated sensor pockets, fluid passages, and variable wall thickness – optimizing material use while enhancing functionality.
Surface technology advancements offer intriguing possibilities. New processes creating microscopic surface patterns on stainless steel U-channels enhance properties without changing composition. These include:
- Laser-textured surfaces with improved liquid management properties
- Superhydrophobic treatments that dramatically reduce biological adhesion
- Enhanced emissivity finishes improving thermal performance
- Anti-fingerprint treatments for architectural applications
Sustainability considerations increasingly influence material selection and manufacturing processes. The inherent recyclability of stainless steel (with typical recycled content exceeding 60% in new production) aligns with circular economy principles. Manufacturers have begun documenting embodied carbon and publishing Environmental Product Declarations specifically for structural profiles like U-channels. A project I consulted on recently received sustainability certification points specifically for using high-recycled-content stainless components with traceable supply chains.
Digital integration represents another emerging trend. Some manufacturers now incorporate QR codes directly stamped into stainless U-channels linking to material certifications, installation guides, and maintenance records. This seemingly simple addition streamlines quality control and facilities management, particularly in regulated environments where material traceability is mandatory.
The combination of stainless steel U-channels with composite materials shows particular promise. Hybrid systems using carbon fiber reinforced polymers within stainless channels create components with exceptional strength-to-weight ratios while maintaining corrosion resistance. Early applications in marine structures have demonstrated remarkable performance in extreme environments.
Standardization efforts continue to evolve as well. Industry associations are developing application-specific standards for stainless steel U-channels in critical uses like clean manufacturing, healthcare, and food processing. These standards address not just dimensional and material requirements, but also surface finish, edge conditions, and testing protocols – reducing specification confusion and improving consistency.
Making Informed Decisions for Your Application
Throughout my experience with various building materials, I’ve found that stainless steel U-channels represent one of those rare components where the initial investment often translates directly to long-term value – when properly specified. The key lies in matching specific requirements with appropriate material grade, dimensions, and finish.
For those considering these components, I recommend a systematic approach:
First, thoroughly analyze the operating environment, particularly regarding corrosion factors. Consider not just obvious exposures like direct weather, but also cleaning chemicals, process materials, and potential cross-contamination. A hospital corridor may seem like a benign environment, but frequent disinfection with aggressive chemicals might necessitate higher-grade stainless than expected.
Next, clearly define performance requirements beyond simple load calculations. Consider factors like thermal cycling, vibration, regulatory compliance, and aesthetic stability over time. During a project for a coastal residential development, the seemingly excessive specification of 316L U-channels for window framing made perfect sense after considering salt exposure, hurricane requirements, and the client’s expectation for decades of service without maintenance.
Engage with manufacturers early in the design process. The best suppliers offer more than just products – they provide valuable expertise on material selection, custom modifications, and installation best practices. When working on complex projects, I’ve found that involving manufacturers during design development often reveals options and potential issues not obvious to even experienced designers.
Consider fabrication requirements realistically. The most perfectly specified material serves no purpose if it cannot be fabricated and installed effectively. During one particularly challenging installation, we modified our approach to use smaller pre-fabricated sections rather than attempting field cutting and welding of large U-channel components – saving time while ensuring quality.
Finally, document expectations clearly. Detailed specifications for material grade, dimensions, finish, fabrication tolerances, and installation methods prevent misunderstandings and substitutions. Include performance requirements rather than just physical descriptions, allowing verification of alternative proposals if they arise.
Stainless steel U-channels occupy a unique position in the spectrum of building components – seemingly simple in form yet capable of solving remarkably complex challenges when properly applied. By understanding their capabilities and limitations, you can make informed decisions that balance initial investment against long-term performance, ultimately achieving superior results for your specific application.
When working with E-Sang, I’ve found their technical support particularly valuable in navigating material selection for challenging environments. Their ability to provide application-specific guidance helps ensure appropriate specification the first time – avoiding costly rework or premature failure.
The industry continues evolving with new grades, manufacturing methods, and surface technologies expanding the possibilities of what can be achieved with these versatile components. Whether your application involves extreme environments, strict regulatory requirements, or demanding aesthetic expectations, properly specified stainless steel U-channels likely offer a solution worth considering – one that will continue performing decades after installation.
Frequently Asked Questions About Stainless Steel U-Channels
Q: What are Stainless Steel U-Channels and how are they used?
A: Stainless Steel U-Channels are structural profiles made from stainless steel, typically having a U-shape with two parallel flanges connected by a web. They are widely used in construction, manufacturing, and architecture due to their high strength, durability, and corrosion resistance. These channels can serve as support structures, frames, or shelving systems in various applications.
Q: What types of Stainless Steel U-Channels are available, and what are their differences?
A: Stainless Steel U-Channels are available in various grades, such as 304/304L and 316/316L, which differ primarily in their chemical composition. The 304 series is more cost-effective and suitable for most general applications, while the 316 series offers superior corrosion resistance, making it ideal for harsh environments. Additionally, U-Channels can be either tapered or non-tapered, depending on the design requirements.
Q: Can Stainless Steel U-Channels be customized?
A: Yes, Stainless Steel U-Channels can be customized to meet specific project needs. Manufacturers often offer options for varying dimensions, lengths, and surface finishes. Custom lengths can range from a few feet up to several dozen feet, allowing for tailored applications.
Q: What are the benefits of using Stainless Steel U-Channels over other materials?
A: The benefits of using Stainless Steel U-Channels include their exceptional corrosion resistance, durability, and aesthetic appeal. They are often preferred over carbon steel due to their ability to withstand harsh environments, reducing the need for frequent repairs or replacements. Additionally, stainless steel is non-toxic and resistant to extreme temperatures, making it suitable for a wide range of applications.
Q: How are Stainless Steel U-Channels fabricated, and what finishes are available?
A: Stainless Steel U-Channels are fabricated using processes like hot rolling or laser welding. Finishes can vary from standard mill finishes to more advanced coatings, such as bead blasting for a smooth appearance. Some manufacturers also offer decorative PVD coatings for aesthetic purposes.
Q: What are some common applications of Stainless Steel U-Channels?
A: Stainless Steel U-Channels are used in a variety of applications, including:
- Structural Support: For building frames and shelving systems.
- Architectural Features: Such as balustrades and decorative elements.
- Industrial Equipment: In machinery and conveyor systems due to their strength and resistance.
- Agricultural and Marine Environments: Where high corrosion resistance is necessary.
